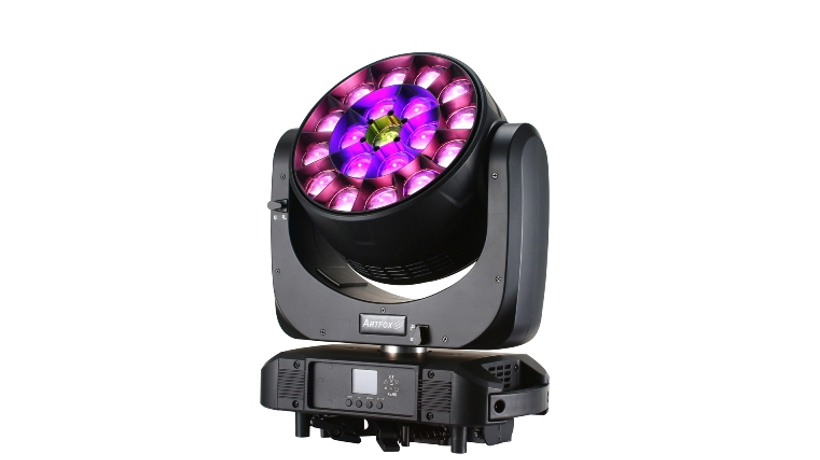

Solar Wash X (Washer)
The Solar Wash X (typically categorized as a high-output LED wash fixture) is built for high-impact stage washes and architectural lighting. It is a staple in the AV rental industry due to its IP65 rating, making it equally reliable for indoor corporate galas or temporary outdoor festivals.
Its configuration utilizes high-power RGBW (Red, Green, Blue, White) LEDs to deliver a broad spectrum of colors, from deep saturates to clean, variable whites.
Technical Specifications
| Category | Details |
| Light Source | 36x8W or 36x10W RGBW High-Power LEDs |
| Luminous Flux | ~9,500 – 10,000 Lumens |
| Beam Angle | 17° Native (Optional 25° or 45° lens filters available) |
| Color Mixing | RGBW Full Color Mixing + Virtual Color Wheel Macros |
| White Balance | Variable Presets (3,200K – 10,000K) |
| Control Protocols | DMX512, RDM, and Integrated Wireless DMX (W-DMX) |
| DMX Channels | 4, 6, or 10 Channel Modes |
| Power Input | AC 100V–240V, 50/60Hz (Auto-ranging) |
| Power Draw | ~245W Max (Extremely efficient for daisy-chaining) |
| Daisy Chain | Up to 18 units on a single 230V line |
| Physical | Weight: 14.5kg (32 lbs) |
Model Configurations
- Thermal Management: Fan-free design using natural convection cooling through a sturdy die-cast aluminum body. This makes it completely silent, which is critical for theater and broadcast.
- Housing: Rugged, outdoor-rated (IP65) chassis with specialized molded power and signal connectors to prevent water ingress.
- Mounting: Flexible “Omega” bracket system for quick rigging on truss or floor standing for architectural up-lighting.
Key Features
- Outdoor Versatility: No need for “rain hats” or domes; it can handle rain, dust, and humidity without additional protection.
- Silent Operation: Ideal for high-end corporate presentations and quiet studio environments.
- Hybrid Wireless: Built-in LumenRadio/W-DMX receivers reduce cable clutter and speed up setup times in complex environments.
