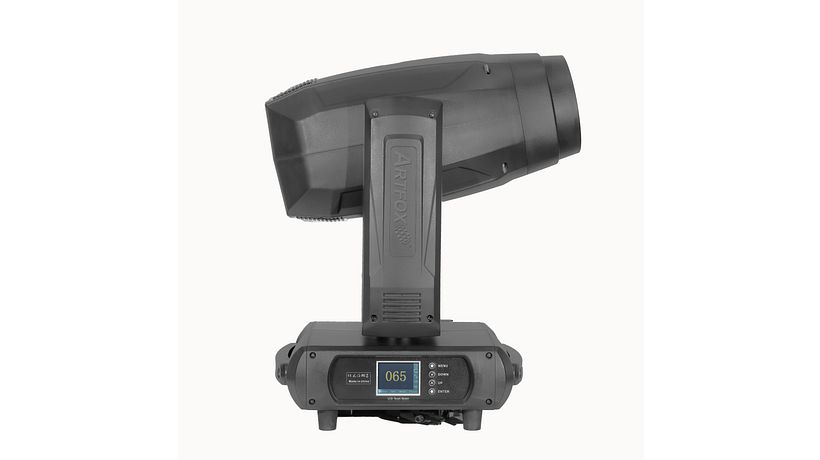

Matrix CMY 450
The Matrix CMY 450 is a powerhouse 3-in-1 hybrid LED moving head, specifically engineered for the high demands of the AV rental and touring markets. Combining beam, spot, and wash capabilities into a single fixture, it offers the ultimate “Swiss Army Knife” solution for lighting designers.
Its standout feature is the integrated CMY Color Mixing and Linear CTO, allowing for seamless transitions from saturated colors to warm, broadcast-ready white light. With a massive output and versatile zoom, it is equally effective at throwing sharp mid-air beams or bathing a corporate stage in a smooth, even wash.
Technical Specifications
| Category | Details |
| Light Source | 450W Cool White LED Engine (approx. 50,000hr life) |
| Output | ~22,000 Lumens |
| Zoom Range | 4° to 36° Linear Motorized Zoom |
| Color System | Full CMY Mixing + 8 Color Wheel + Linear CTO (3200K–5600K) |
| Gobos | 12 Fixed Metal Gobos + 8 Rotating/Replaceable Glass Gobos |
| Effects | 3-Facet & 5-Facet Rotating Prisms (Layerable) + Frost Filter |
| Control | DMX512 (25/26 Channels), RDM, Master/Slave |
| I/O Ports | 3-pin & 5-pin XLR DMX |
| Power | AC 100-240V |
| Physical | Weight: 21.5kg (47.3 lbs) |
Key Features
- Reduced Rigging Time: One fixture covers three roles (Beam/Spot/Wash), thinning out your truck pack.
- Flicker-Free: High-speed PWM makes it safe for high-definition cameras and live streaming.
- Tour-Ready: Modular internal design for easy on-site maintenance and gobo swaps.
